PIGNet: A physics-informed deep learning model toward generalized drug-target interaction predictions.
TL;DR: A physics-informing strategy is proposed to predict the atom–atom pairwise interactions via physics-informed equations parameterized with neural networks and provides the total binding affinity of a protein–ligand complex as their sum.
read more
Abstract: Recently, deep neural network (DNN)-based drug-target interaction (DTI) models are highlighted for their high accuracy with affordable computational costs. Yet, the models' insufficient generalization remains a challenging problem in the practice of in-silico drug discovery. We propose two key strategies to enhance generalization in the DTI model. The first one is to integrate physical models into DNN models. Our model, PIGNet, predicts the atom-atom pairwise interactions via physics-informed equations parameterized with neural networks and provides the total binding affinity of a protein-ligand complex as their sum. We further improved the model generalization by augmenting a wider range of binding poses and ligands to training data. PIGNet achieved a significant improvement in docking success rate, screening enhancement factor, and screening success rate by up to 2.01, 10.78, 14.0 times, respectively, compared to the previous DNN models. The physics-informed model also enables the interpretation of predicted binding affinities by visualizing the energy contribution of ligand substructures, providing insights for ligand optimization. Finally, we devised the uncertainty estimator of our model's prediction to qualify the outcomes and reduce the false positive rates.
read more
Chat with Paper
AI Agents for this Paper
Find similar papers on Google Scholar, PubMed and Arxiv
Write a critical review of this paper
Analyze citations of this paper to find unaddressed research gaps
Figures
Fig. 2 The training scheme of PIGNet. We use three types of data in model training - true binding complex, true binder ligand-protein pair in computer-generated binding pose, and non-binding decoy complex. PIGNet predicts binding free energy for each input. For a true binding complex, the model learns to predict its true binding energy. The model also learns to predict the energy of a computergenerated binding pose complex or a non-binding decoy complex in higher value than the true binding energy and threshold energy, respectively. Finally, PIGNet learns the proper correlation of ligand atom position and binding affinity by minimizing the derivative loss.
Fig. 3 Interpretation of the predicted outcomes. a. Substructural analysis of ligands for two target proteins. Protein-tyrosine phosphatase non-receptor type 1 (PTPN1) and platelet activating factor acetylhydrolase (PAF-AH). The blue and red circles indicate common and different substructures, respectively, and the predicted energy contribution (unit: kcal/mol) of each substructure is annotated. The inhibitory constant, Ki, indicates how potent the ligand binds to the target protein. b. A distance-energy plot of carbon-carbon pairwise van der Waals (VDW) energy components in the test set. The red solid line illustrates the original distance-energy relation without any deviation induced by learnable parameters. The closer the color of a data point to yellow, the larger the number of corresponding carbon-carbon pairs. c. The average value of the corrected sum of VDW radii, d′i j, corresponding to different carbon-carbon pair types. Csp2 −Csp2 , Csp2 −Csp3 , and Csp3 −Csp3 pairs are compared. The results include 95% confidence intervals.
Table 2 The CASF-2016 benchmark results for the 3D GNN-based model and PIGNet (Single) with and without using data augmentation. The highest values within the same model are shown in bold

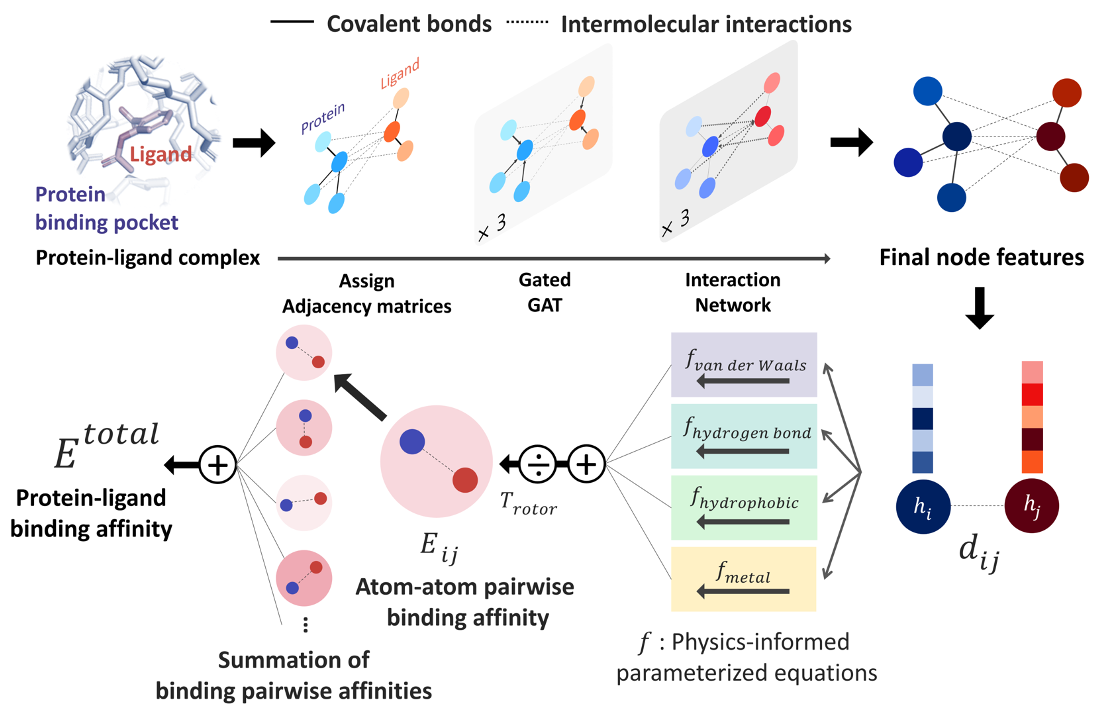

Fig. 1 Our model architecture. A protein-ligand complex is represented in a graph and adjacency matrices are assigned from the binding structure of the complex. Each node feature is updated through neural networks to carry the information of covalent bonds and intermolecular interactions. Given the distance and final node features of each atom pair, four energy components are calculated from the physics-informed parameterized equations. The total binding affinity is obtained as a sum of pairwise binding affinities, which is a sum of the four energy components divided by an entropy term.
Fig. 4 Plot of the average Pearson’s correlation coefficients, R, of the 5-fold PIGNet model, with or without the uncertainty estimator, on the datasets classified according to the total uncertainty. PIGNet with the uncertainty estimator - low: the lowest third, random: the randomly selected one third, high: the highest third of the uncertainty distribution. PIGNet without Monte Carlo dropout - baseline: The scores of a single PIGNet model shown in the table 1. Error bars represent 95% confidence intervals. PIGNet was tested at the 2,300th training epoch with and without Monte Carlo dropout.
Table 1 Benchmark test results on the CASF-2016 and the CSAR NRC-HiQ dataset. R, ρ indicate Pearson correlation coefficient and Spearman’s rank correlation coefficient, respectively. Top 1 score was used for a docking success rate, and top 1% rate was used for an average EF and a screening success rate. ∆VinaRF20 63 was excluded from the comparison, as it was fine-tuned on the PDBbind 2017 data, which in fact includes ∼ 50% of data in the CASF-2016 test set. The highest values of each column are shown in bold
