What is the main function of the flash memory?

The flash memory can also be used for storage and in this project, it is used to store the parameters for the hand gesture recognition neural network.

What is the key feature of the system?

One of the key features of this project is the ability of the system to adapt to different users through flexible reprogramming of neural network weights.

What is the main software routine of the Sensor Node?

It contains the following features: display and acceleration data, load neural network weights, execute realtime neural network algorithm, activate alarm when battery level is too low or the Sensor Node cannot be detected, and control the Sensor Node remotely.

What is the main component of the module?

It consists of a Jennic JN5139 wireless transceiver module, an Analog Devices ADXL330 accelerometer, a lithium polymer battery and a charger system.

What is the purpose of the project?

For this project, the microcontroller has been programmed to contain the following features: acquire accelerometer reading, execute the embedded neural network algorithm, transmit results or raw acceleration data to the PC interface, and program neural network weights wirelessly.

What is the programming mode of the module?

In the programming mode, the PC is connected to the header via a USB cable which contains a FTDI FT232 conversion IC in the cable connecting housing.

What is the problem with the battery voltage monitor?

When the supply voltage falls below 2.97V, or 10% above the minimum operating voltage of the Jennic module of 2.7V, the PC interface will flash an alarm to the user.

What is the main purpose of the module?

The Jennic JN5139 Zigbee Module is a surface mount module that allows Zigbee systems to be implemented with a short development time and low cost.

What is the IC used in this project?

It is a 5 pin SOT23 surface mount IC that provides specific charge algorithms for single cell lithium polymer or lithium iron batteries to achieve optimal charging in the shortest possible time.

How does the Home Control Interface work?

The Home Control Interface also demonstrates the feasibility of control home appliances using the hand gesture, and would present an opportunity for a section of the aging population and disabled people to lead a more independent life.

What is the main feature of the system?

Although the neural network architecture can be programmed into the modules, the weights have to be transferred from the PC, where the neural network is trained, to the modules.

Open AccessProceedings Article10.1109/IEMBS.2008.4649672

Human computer interaction using hand gesture

Silas Wan, +1 more

- 14 Oct 2008

- Vol. 2008, pp 2357-2360

TL;DR: In this article, a hand-worn wireless module with a 3-axis accelerometer as the motion sensor is used for controlling home appliances using hand gestures and a home control interface is designed so that the user can control home appliances by moving through menus.

Abstract: Hand gesture is a very natural form of human interaction and can be used effectively in human computer interaction (HCI). This project involves the design and implementation of a HCI using a small hand-worn wireless module with a 3-axis accelerometer as the motion sensor. The small stand-alone unit contains an accelerometer and a wireless Zigbee transceiver with microcontroller. To minimize intrusiveness to the user, the module is designed to be small (3cm by 4 cm). A time-delay neural network algorithm is developed to analyze the time series data from the 3-axis accelerometer. Power consumption is reduced by the non-continuous transmission of data and the use of low-power components, efficient algorithm and sleep mode between sampling for the wireless module. A home control interface is designed so that the user can control home appliances by moving through menus. The results demonstrate the feasibility of controlling home appliances using hand gestures and would present an opportunity for a section of the aging population and disabled people to lead a more independent life.

AI Agents for this Paper

Find similar papers on Google Scholar, PubMed and Arxiv
Write a critical review of this paper
Analyze citations of this paper to find unaddressed research gaps

Most frequently asked questions

1. What are the contributions in this paper?

This project involves the design and implementation of a HCI using a small hand-worn wireless module with a 3-axis accelerometer as the motion sensor.

2. What are the main software features of the Jennic JN5139?

They include the dropout detection and re-connection of the wireless communication, as well as the battery voltage monitor module.

3. What is the purpose of the Zigbee protocol?

Unlike Bluetooth, Zigbee is designed for short range communication for intelligent devices with low data rate and low current consumption.

4. What is the main software routine of the Receiver Node?

The UART routine receives serial packets from the PC interface while the Zigbee routine receives Zigbee messages from the Sensor Node.

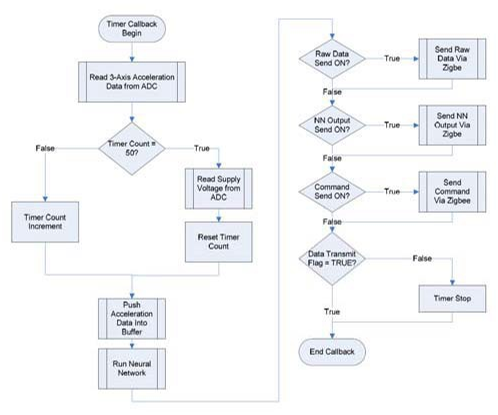

Fig. 2. Sensor Node Timer Callback Flowchart
